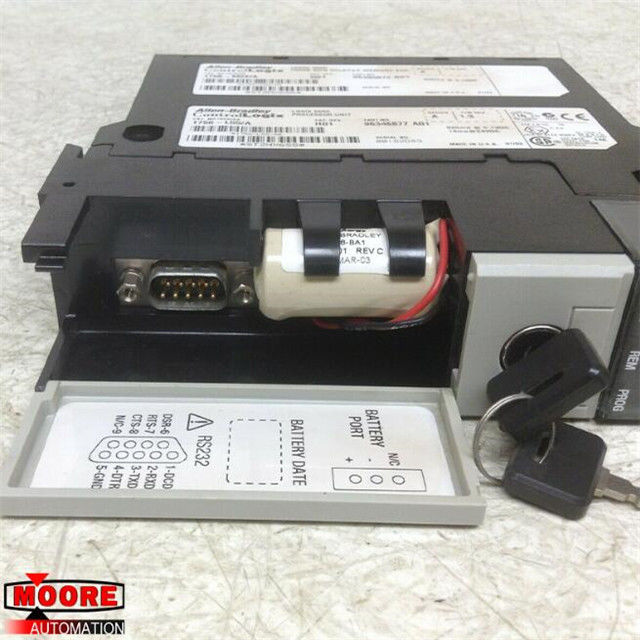

1756-M22 1756M22 آلن بردلی ControlLogix Logix5555 ماژول حافظه غیر ولتاژ
for برای قیمت مناسب اینجا را کلیک کنید 1756-M22
نام تجاری / تولید کننده | آلن برادلی / ایالات متحده |
شماره قطعه |
1756-M22 |
تعداد قطعه متناوب | 1756-M22 |
شرح | موتور سرویس |
ابعاد |
18x12.6x12cm |
وزن | 0.7 کیلوگرم |
مشخصات محصول
The AB 1756-M22 module is a 750 KB non-volatile memory module for AB ControlLogix 5555 controllers. ماژول AB 1756-M22 یک ماژول حافظه غیر فرار 750 KB برای کنترل کننده های AB ControlLogix 5555 است. ControlLogix controllers with which the 1756-M22 module is compatible include the 1756-L55, 1756-L55M12, 1756-L55M13, 1756-L55M14, 1756-L55M16, 1756-L55M22, 1756-L55M23, and the 1756-L55M24 controllers. کنترل کننده های ControlLogix که ماژول 1756-M22 با آن سازگار است شامل کنترل کننده های 1756-L55 ، 1756-L55M12 ، 1756-L55M13 ، 1756-L55M14 ، 1756-L55M16 ، 1756-L55M22 ، 1756-L55M23 و کنترلرهای 1756-L55M24 می باشد. Firmware version 10.x or later is required to be used on the controllers for them to work with the 1756-M22 memory module. نسخه سیستم عامل 10.x یا بعد از آن ، برای کار با آنها باید با ماژول حافظه 1756-M22 مورد استفاده قرار گیرد. If the controllers have an older firmware version, the controller firmware must be upgraded prior to memory module installation. اگر کنترلرها دارای نسخه سیستم عامل قدیمی تر باشند ، سیستم عامل کنترلر قبل از نصب ماژول حافظه باید به روز شود. To prevent damage to the memory module, the battery must be disconnected from the controller before installing or replacing the memory module. برای جلوگیری از آسیب رسیدن به ماژول حافظه ، قبل از نصب یا تعویض ماژول حافظه باید باتری از کنترلر جدا شود. The installation or replacement of the 1756-M22 module on the ControlLogix 5555 controller requires the following 4 steps: removing the side plate of the controller, removing the existing memory board, installing the new memory board, and replacing the controller side plate. نصب یا تعویض ماژول 1756-M22 در کنترلر ControlLogix 5555 به 4 مرحله زیر نیاز دارد: از بین بردن صفحه جانبی کنترلر ، از بین بردن برد حافظه موجود ، نصب برد حافظه جدید و تعویض صفحه جانبی کنترلر. Labels can be placed on the side of the controller to identify the type of memory board that is installed. برای مشخص کردن نوع برد حافظه نصب شده ، می توانید برچسب ها را در کنار کنترلر قرار دهید.
The 1756-M22 module is sensitive to ESD. ماژول 1756-M22 نسبت به ESD حساس است. The following precautions need to be followed to prevent damage to the module: touching a grounded object to discharge static, wearing a grounded wrist strap, avoiding touching the connector or module components, using static-safe workstations, and storing the module in static-safe containers. برای جلوگیری از آسیب رسیدن به ماژول باید اقدامات احتیاطی زیر را رعایت کنید: لمس کردن یک شیء زمینی برای تخلیه استاتیک ، پوشیدن بند مچ دست زمینی ، جلوگیری از تماس با کانکتور یا اجزای ماژول ، استفاده از ایستگاه های کاری ایمن و استاتیک و ذخیره کردن ماژول در حالت استاتیک ظروف The operating temperature range for the 1756-M22 module is from 0 to 60 degrees Celsius. دامنه دمای عملیاتی برای ماژول 1756-M22 از 0 تا 60 درجه سانتیگراد است. The storage temperature range for the module is from -40 to 85 degrees Celsius. دامنه دمای ذخیره سازی ماژول از -40 تا 85 درجه سانتیگراد است. The range for the relative humidity is from 5 to 95% (non-condensing). دامنه رطوبت نسبی از 5 تا 95٪ (غیر چگالش) است. The operating and non-operating shock ratings for the module are 30 G and 50 G, respectively. رتبه بندی شوک عامل و غیر عامل برای این ماژول به ترتیب 30 گرم و 50 گرم است. The enclosure of the module is open and it complies with the T4 North American temperature code and the T4 IEC temperature code. محفظه ماژول باز است و مطابق با کد دمای T4 آمریکای شمالی و کد دما T4 IEC است.
خدمات ما
100٪ کامل جدید - مهر و موم کارخانه اصلی
گارانتی: 12 ماه
بسته بندی: بسته بندی اصلی با کارتن
زمان تحویل: ظرف 3 روز پس از پرداخت ارسال می شود
