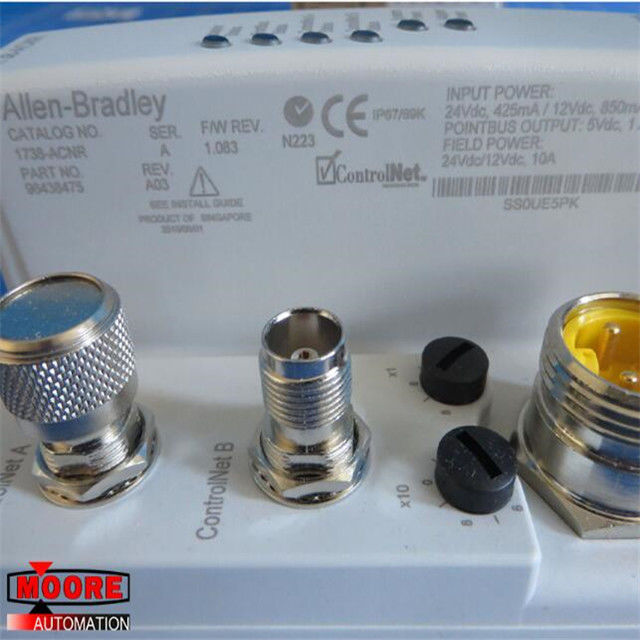

آداپتور افزوننده 1738-ACNR 1738-ACNR Allen Bradley CONTROLNET
for برای قیمت مناسب اینجا را کلیک کنید 1738-ACNR
نام تجاری / تولید کننده | آلن برادلی / ایالات متحده |
شماره قطعه |
1738-ACNR |
تعداد قطعه متناوب | 1738-ACNR |
شرح | موتور سرویس |
ابعاد |
8.0 cm x 15.2 cm x 13.6 cm |
وزن | 1.4 کیلوگرم |
مشخصات محصول
The AB 1738-ACNR ArmorPoint ControlNet Adapter can support a maximum of 63 modules, 5 rack-optimized connections, and 25 direct connections. آداپتور AB 1738-ACNR ArmorPoint ControlNet می تواند حداکثر 63 ماژول ، 5 اتصال بهینه دندانه دار و 25 اتصال مستقیم را پشتیبانی کند. It has a backplane current output of 1.0 Amp (maximum), although this may be extended beyond 1 Amp with an AB 1738-EP24DC Backplane Extension Power Supply. دارای یک جریان خروجی پشت صفحه از 1.0 آمپر (حداکثر) ، اگرچه ممکن است با یک منبع تغذیه المان-AB 1738-EP24DC Backplane Backplane از 1 آمپر افزایش یابد. The 1738-ACNR adapter gets a 24 Volts Input voltage rating; آداپتور 1738-ACNR دارای یک ولتاژ ورودی 24 ولت است. its inrush current is 6 Amps maximum for 10 milliseconds. جریان ورودی آن حداکثر 6 آمپر برای 10 میلی ثانیه است. Its ControlNet Communication Rate is 5 Megabits per second, and it receives an input voltage rating of 24 Volts, with a 10 to 28.8 Volts voltage range. میزان ارتباطات ControlNet آن 5 مگابیت بر ثانیه است و دارای یک ولتاژ ورودی از 24 ولت ، با برد 10 تا 28.8 ولت است. This adapter has a maximum field-side power requirement of 24 Volts at 425 milliamps. این آداپتور حداکثر توان مورد نیاز میدان را 24 ولت در 425 میلی آمپر دارد. There are LED indicators to allow the end-users to determine the adapter's status, with 1 green/red adapter status LED, 2 green/red ControlNet status LED, 1 green/red PointBus status LED, 1 green System Power LED, and 1 green Adapter Power LED. نشانگرهای LED وجود دارد که به کاربران نهایی امکان تعیین وضعیت آداپتور را می دهد ، دارای 1 عدد آداپتور سبز / قرمز LED ، 2 چراغ کنترل وضعیت سبز / قرمز ، 1 LED / وضعیت PointBus به رنگ سبز / قرمز ، 1 LED چراغ برق ، و 1 سبز آداپتور برق LED.
General specifications on the 1738-ACNR adapter include the maximum power consumption of 10.2 Watts at 28.8 Volts as well as a maximum power dissipation of 5.0 Watts at 28.8 Volts. مشخصات عمومی در آداپتور 1738-ACNR شامل حداکثر توان مصرفی 10.2 وات در 28.8 ولت و همچنین حداکثر اتلاف مصرف 5.0 وات در 28.8 ولت است. This adapter's maximum thermal dissipation is 16.9 British Thermal Units (BTU) per hour at 28.8 Volts voltage. حداکثر اتلاف حرارتی این آداپتور 16.9 واحد حرارتی انگلیس (BTU) در هر ساعت با ولتاژ 28.8 ولت است. It also has a Field Power Bus Nominal Voltage of 24 Volts, alongside a supply voltage range of 10 to 28.8 Volts and a supply current of 10 Amps (maximum). همچنین دارای ولتاژ نامی ولتاژ نام اتوبار Field Power Bus 24 ولت ، در کنار ولتاژ ولتاژ منبع تغذیه 10 تا 28.8 ولت و جریان تغذیه 10 آمپر (حداکثر) است. The operating temperature range that this adapter must be kept within is from -4 to 140 degrees Fahrenheit, along with a storage temperature range between -40 and 185 degrees Fahrenheit. محدوده دمای عملیاتی که این آداپتور باید در آن نگه داشته شود از -4 تا 140 درجه فارنهایت است و همچنین دامنه دمای انبارداری بین -40 تا 185 درجه فارنهایت است. The relative humidity of this adapter's operating conditions should be between 5 and 95%, non-condensing. رطوبت نسبی شرایط کار این آداپتور باید بین 5 تا 95 درصد ، بدون کندانس باشد. The 1738-ACNR adapter has a Group 1 Class A emissions rating that is compliant with CSPR 11. It has an enclosure type rating that meets IP 65, 66, and 67 standards (when marked). آداپتور 1738-ACNR دارای درجه انتشار آلاینده های گروه 1 A است که مطابق با CSPR 11 است. دارای رتبه ای از نوع محصور است که مطابق با استاندارد های IP 65 ، 66 و 67 (در صورت علامت گذاری) است.
