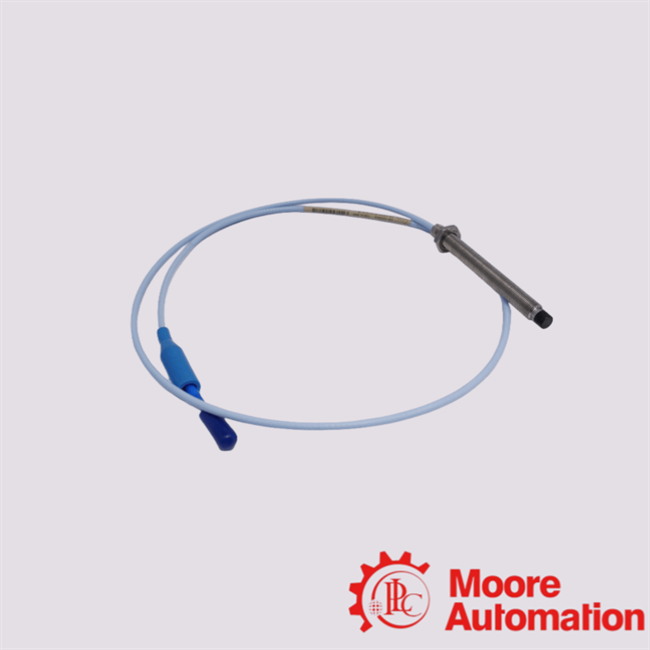

330103-00-10-15-02-05 Bently Nevada Proximity Probe
Description
The Bently Nevada 330103-00-10-15-02-05 is an 8 mm proximity probe from the 3300 XL series, designed for high-precision vibration and
position measurement in rotating machinery. This probe utilizes eddy current sensing technology to provide accurate, non-contact
displacement measurements, making it ideal for monitoring critical machinery such as turbines, compressors, and motors.
330103-00-10-15-02-05 Details
|
FAQ
|
|
Q1: What is the linear measurement range of this probe?
A1: The linear range is 0.25 mm to 2.3 mm (10 to 90 mils).
Q2: What is the recommended gap setting for installation?
A2: The recommended gap setting is approximately 1.27 mm (50 mils).
Q3: What is the maximum operating temperature of the probe?
A3: The standard maximum operating temperature is +177°C, with an extended temperature
option up to +218°C (probe tip).
Q4: Is this probe compatible with other Bently Nevada components?
A4: Yes, the 3300 XL 8 mm proximity probe is designed for complete interchangeability with
other 3300 XL series probes, extension cables, and Proximitor sensors, eliminating the need for matching or bench calibration.
|
|
|
|
