330500-06-02 Bently Nevada Sensor Proximity

Name: 330500-06-02 Bently Nevada Sensor Proximity
Brand: MOORE AUTOMATION LIMITED
SKU: 330500-06-02
Availability: InStock

جزئیات محصول:

محل منبع:	ایالات متحده آمریکا
نام تجاری:	Bently Nevada
گواهی:	CO.CQ
شماره مدل:	330500-06-02

جزئیات اطلاعات

محل منبع:

ایالات متحده آمریکا

نام تجاری:

Bently Nevada

گواهی:

CO.CQ

شماره مدل:

330500-06-02

شرح:

حسگر نزدیکی

شماره قطعه:

330500-06-02

مارک:

بنگل نوادا

سال تولید:

2020

کاربرد:

نیروگاه هسته ای

زمان پیشرو:

در انبار

وزن:

4 پوند

برجسته کردن:

High Light

برجسته کردن:

Bently Nevada proximity sensor,3500 System proximity sensor,Bently Nevada sensor with warranty

3500 System proximity sensor

Bently Nevada sensor with warranty

اطلاعات تجارت

مقدار حداقل تعداد سفارش:

قیمت:

inquiry

جزئیات بسته بندی:

جدید و اصلی با کارخانه مهر و موم شده

زمان تحویل:

امروز

شرایط پرداخت:

t/t

قابلیت ارائه:

10 قطعه در روز

توضیحات محصول

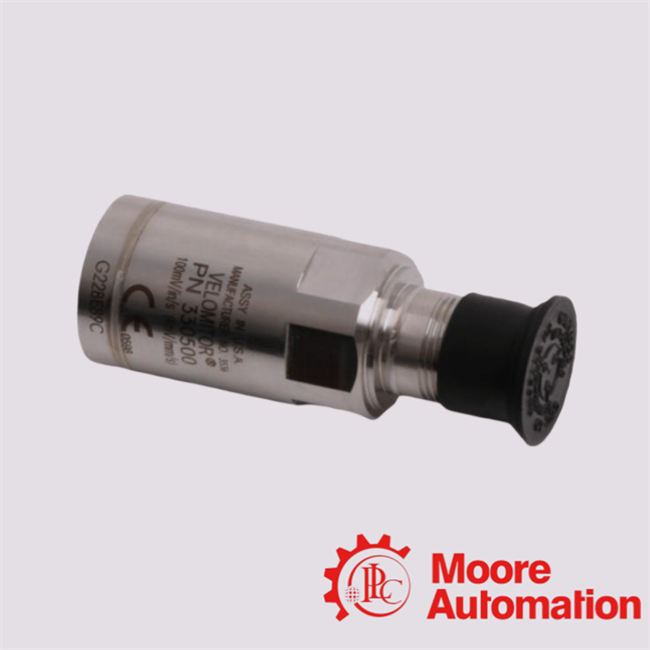

330500-06-02 Bently Nevada Sensor Proximity

`Description`

The Bently Nevada 330500 series is part of the Velomitor family of piezoelectric velocity / vibration sensors designed to

measure absolute vibration (i.e. relative to free space) of a machine

casing, bearing housing, or structure.

330500-06-02 Details

FAQ

Q1. Is “330500-06-02” a proximity probe (eddy-current) or a vibration sensor?

Despite “proximity” sometimes being used loosely, the 330500 series is a piezoelectric

velocity / vibration sensor (Velomitor). It senses casing vibration

rather than shaft displacement.

Q2. What does the “-06-02” suffix mean?

The “-06” often refers to the mounting thread / adapter, e.g. “-06: 5/8-18 UNF thread” in some listings.

The “-02” may denote a particular agency approval / certification (for e.g. ATEX /

hazardous area compatibility) in that variant.

Q3. How do I mount the sensor?

Use a rigid, clean, smooth mounting surface on the bearing housing or structural casing.

Improper mounting can degrade amplitude and frequency response.

Torque the mounting properly (24–40 in-lb).

Q4. What range of vibration signals can it detect?

Useful within ~4.5 Hz to 5 kHz (±3 dB) band.

Up to ~1270 mm/s (50 in/s) peak velocity.
