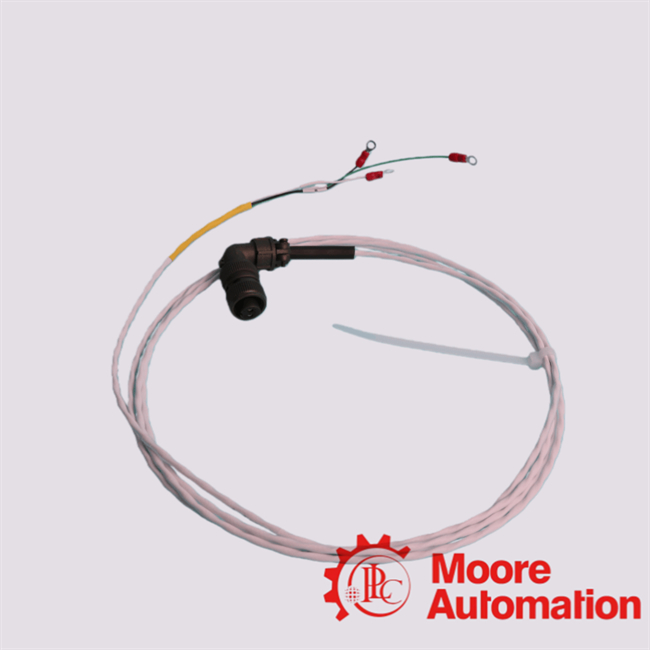

89477-50 Bently Nevada Proximity Probe cable
Description
The ently Nevada 89477-50 interconnect/proximity-probe cable is specified for use with Bently Nevada velocity sensors (Velomitor® family) or proximity
transducer systems, to connect the sensor to the monitoring system or housing. For example, the datasheet for Velomitor sensors lists
the 89477 series cable as the “2-conductor 18 AWG twisted, shielded cable with right-angle 2-socket plug
at one end, terminal lugs at the other end. Used with monitors
and with 21128 Velocity Transducer Housing.”
89477-50 Details
|
FAQ
|
|
Q1: What is the function of the 89477-50 cable?
A: The 89477-50 cable is used to connect a proximity or velocity sensor (in the Bently Nevada system) to the monitor or transducer housing. It provides the proper electrical interface (two-conductor, twisted & shielded) with matched terminations to maintain signal quality.
|
|
Q2: Can this cable be used with any Bently Nevada sensor?
A: The cable is specified for use with Bently Nevada sensors in the 3300 / 3500 / Velomitor families and with certain housings like the 21128 Velocity Transducer Housing, per the generic 89477 series documentation.However, always check the exact part number compatibility, length, termination style (e.g., right-angle plug vs. straight) to ensure correct mating.
|
|
Q3: What length options are available for the 89477-50 cable?
A: For the broader 89477 family, minimum length is 2.0 ft (0.6 m) and maximum length is 99 ft (30 m) as per the Velomitor data sheet. The “-50” suffix likely indicates a specific length/configuration (e.g., maybe 50 feet or some other internal designation). For exact length of 89477-50, the manufacturer ordering documentation or part-number notes should be consulted.
|
|
Q4: What are the conductor and shielding specifications?
A: According to the catalog reference, the 89477 cable is “2-conductor 18 AWG twisted, shielded cable with right angle 2-socket plug at one end, terminal lugs at the other end.” The twisted pair improves noise immunity, the shielding reduces interference, and the right-angle plug/terminal lugs enable proper mechanical termination.
|
